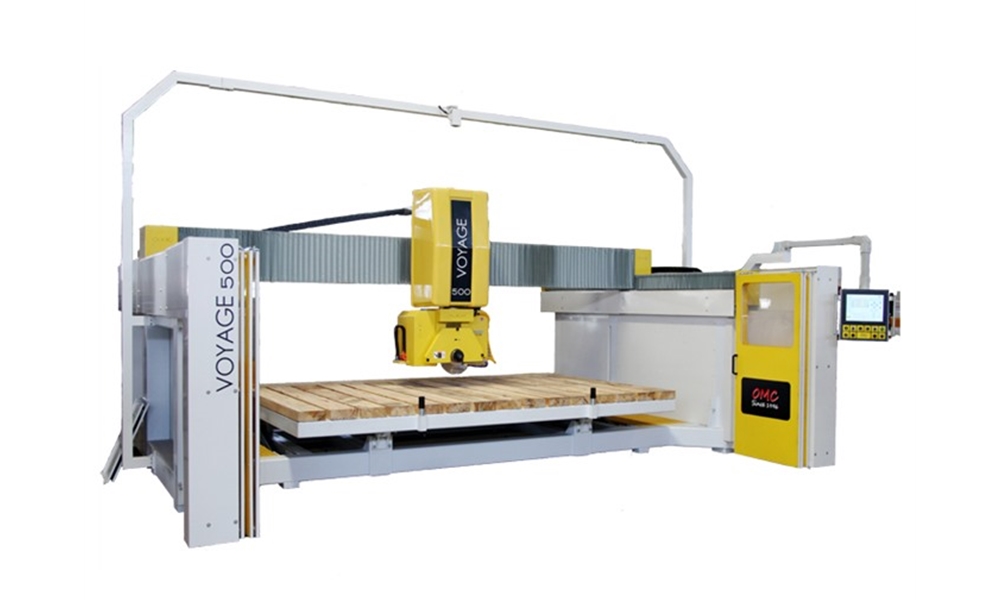

Name：ICON five-axis bridge cutting

Details

Yingke five-axis bridge cutting. Adopting advanced microcomputer control system, it can realize manual programming, PC programming and other programming methods, and automatically complete the processing work. Can be convenient for cutting, edge grinding, grooving, kitchen table processing, shaped processing and other occasions.

Product features

1. Photographing, typesetting and positioning, and automatic measurement of plate thickness and tool size.

2. Use good computer system control, simple operation, high efficiency.

3. Choose good quality electrical appliances with long service life and low maintenance cost

4. The native supports one-click transformation in multiple languages.

Product parameters and price

Programming method	Manual programming
Programming method 2	CAD The import
Control method	CNC
Main motor power	7.5kw
Working voltage	380V-3phase/50HZ
Speed R.P.M	1000-6000r/min
Blade size	350-400mm
X-axis working stroke	3500mm
Y-axis working stroke	2000mm
A-axis working stroke	360°Rotate freely
B-axis working stroke	0-90°Automatic chamfering
Cutting thickness	80mm
Processing precision	0.2mm
Working table size	3500*2000mm
Tilting working table	YES
Camera	YES
Overall size	580031203320mm
Weight	*3900*KG
